With my new found elbow room for my by-products plant I'm able to add a few more structures, namely a Benzol plant and also, the subject of this post, an Ammonium Sulfate storage building.  I found a photo of an unique building serving this purpose on the HAER site and set about to build a very compressed version of it.  I'm not sure of the name of the coke works, but will include this information in a future post.  It is in Alabama and isn't Thomas Coke.  It has some interesting features that include a coal bunker filled directly by railcars via a very elevated spur.  Also, the quench tower is perpendicular to the oven battery and the associated quench car track follows a 180 degree curve.   I started with the actual storage building - there is also a tower to elevate the product and a connecting horizontal conveyor.
Building the Core

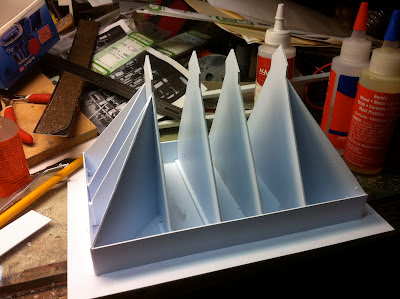

This building sort of looks like a Mayan pyramid or something, but allows for bulk storage of the ammonium sulfate by-product.  The base is .060 styrene and the internal formers are .040 sheet styrene.  The structure is sheathed in .040 styrene with a JTT corrugated metal plastic sheet glued on the large roof.  The concrete buttresses are made from .040 sheet and .020 strip.

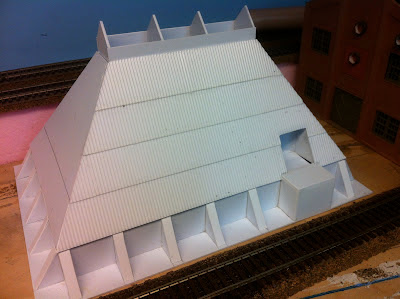

Corrugated material on one side so far.  Corrugations are a little heavier than scale but will probably look fine once it's all built
